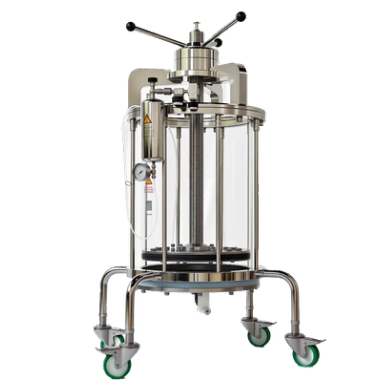

Mcc Manual Chromatography Column
Product Overview
The MCC manual chromatography column is designed for pilot-scale amplification of biological products in accordance with cGMP regulations. Its distribution structure is consistent with that of the automatic column ACC, enabling linear amplification of column efficiency. Maintaining consistency can achieve linear amplification of column efficiency. The MCC manual chromatography column adopts Schott's finely processed glass design, demonstrating significant advantages both in product quality and performance.
Product Features
Use Schott finely processed glass.
The screen material is available in either PP or stainless steel.
The bottom screen mesh is designed to be direcStly disassembled, making it convenient to remove the screen mesh.
The bottom is equipped with an L-shaped liquid outlet pipeline for convenient connection of pipelines.
Column efficiency can be linearly scaled up to industrial production.
Material parameter
Model | 50 | 70、100、140、200 | 300、450 |
Pipeline | PTFE | SS316L | |
Dispenser | PP(FDA) | ||
Sieve | SS316L | PP(FDA) or SS316L | SS316L |
Seals | EPDM(FDA) | ||
Cylindrical | SCHOTT Glass | SCHOTT Glass or Blanson PMMA(FDA) | |
Note: The Cylindrical can be customized to be made of stainless steel
Technical parameter
Model | MCC50 | MCC70 | MCC100 | MCC140 | MCC200 | MCC300 | MCC450 |
Column ID | 50 | 70 | 100 | 140 | 200 | 296 | 450 |
Interface size | 1/4” | 1/4” | 3/8” | 3/8” | 3/8” | 1/2” | 1/2” |
Column height | 30 | 50 | 50 | 50 | 50 | 50 | 60 |
Usable height | 2.6-22 | 2.6-42 | 2.7-41 | 2.7-41 | 2.7-41 | 5-46 | 5-51 |
Usable volume | 0.05-0.43 | 0.1-1.6 | 0.2-3.2 | 0.4-6.3 | 0.8-12.8 | 3.4-31.6 | 7.95-81.0 |
Max. pressure | 6 | 6 | 6 | 6 | 6 | 3 | 3 |
Column size | 30x30x60 | 54x54x133 | 54x54x133 | 69x69x135 | 64x64x135 | 66x66x163 | 72x72x173 |
Weight | 5 | 12 | 15 | 32 | 45 | 98 | 200 |
Note：
1. Operating temperature:4-40℃
2. Special column height and 6 bar pressure is customizable as customer request
3. Column valve is optional for the column diameter bigger than 300mm
4. The material of column body for model 50-300 is imported schott galss,and for model 450 is imported BlansonPMMA.
