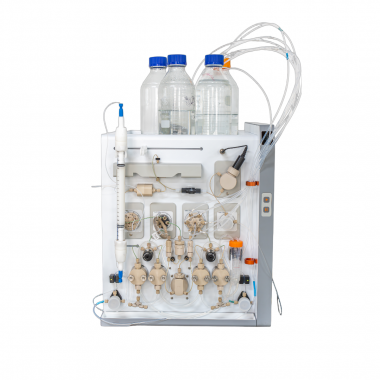

Protein purification systems are mainly applied in the field of biopharmaceuticals such as monoclonal antibodies, recombinant proteins, vaccines, biochemical drugs, antibiotics, natural products and polysaccharides. Used for the separation and purification of downstream processes of biological products.
Modular design offers multiple configurations to meet the requirements of special process flows.
Equipped with high-precision double-plunger infusion pumps, it ensures excellent separation reproducibility.
All parts of the system that come into contact with liquids are composed of biocompatible materials and comply with relevant regulations such as FDA and USPVI.
The DAD detector avoids the instability and high failure rate brought by the traditional mechanical switching detector.
The fixed-wavelength detector lamp is a long-life LED lamp with a lifespan of over 8,000 hours, reducing maintenance costs.
It features pre-column, post-column, differential pressure alarm, bubble sensor detection and other functions, which greatly protect the safety of the system and the chromatography column.
Technical parameters
Model | FPLC25 | FPLC150 | FPLC300 | |
Host standard configuration | Pump | Dual-pump system | ||
Flow rate range | 0.01-25ml/min | 0.01-150ml/min | 0.01-300ml/min | |
Gradient type | Linear, isocratic, stepped gradient | |||
Automatic injection valve | Software control, supporting Load, Inject, and Waste functions | |||
DAD detector | Wavelength range: 185-40nm. Channel: 4 wavelengths | |||
Temperature sensor | Reading range: 0-100℃ Temperature compensation can be provided for conductivity and pH | |||
Conductivity detector | Detection range: 0.01-999.99mS/cm, including temperature compensation | |||
Adjustable back pressure valve | 0.2±0.05MPa | |||
Online filter | 20μm PP filter | |||
pH detector | 0-14 accuracy 0.1 | |||
Bubble sensor | Ultrasonic tube clamping type | |||
mixed tank | 1.4ml, 5ml | |||
Control software | Chinese and English control software | |||
Optional | UV detector | Deuterium light source 185-400 four wavelengths(Xenon lamp source) | ||
Buffer inlet valve | Both A and B pumps can be optionally equipped with 2, 6 or 8-channel inlet valves | |||
Outlet valve | Optional 2, 6, and 8-channel large-volume collection valves are available | |||
Component collector | Supports 96-well plates, 13mm, 16mm and 30mm standard test tube racks | |||
Column position valve | Single-column valve, three-column valve, four-column valve | |||
Pressure monitoring | System pressure, Pre-column pressure and post-column pressure are optional | |||
Sample pump | Flow rate optiona: 25ml、150、300ml/min. Optional 2, 6, 8 channel inlet valve | |||
