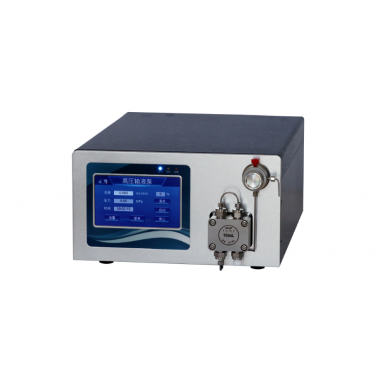

The device uses a dual plunger mode, floating plunger design. With an advanced pump drive system, the pump has better performance, higher accuracy and better stability. Using electronic pulsation compensation technology, multi-point flow correction, to ensure the flow accuracy in the full flow range, more accurate flow rate, more stable performance and reliable operation. Firmware program can be updated online, with power failure protection program. It can alarm in time and automatically stop the operation of the pump according to the set program.
Technical parameter
Model | EMP0010 | EMP0050 | EMP0100 | EMP0200 | EMP0500 | EMP1000 | EMP3000 |
Inlet port | 1/8 | 1/8 | 4mm | 4mm | 1/4 | 10mm | 10mm |
Outlet port | 1/16 | 1/16 | 1/16 | 1/16 | 1/8 | 1/8 | 6mm |
Infusion way | Double pistons in series model | ||||||
Min flow set | 0.001mL/min | 0.001mL/min | 0.01mL/min | 0.01ml/min | 0.01mL/min | 0.01ml/min | 0. 1ml/min |
Flow rate range | (0～9.999) mL/min | (0-49.999) mL/min | (0~99.99) mL/min | (0～199.99) mL/min | (0～499.99) mL/min | (0～999.99) mL/min | (0～2999.9) mL/min |
Max.working pressure | 42Mpa | 30Mpa | 25MPa | 20MPa | 15MPa | 15MPa | 10MPa |
Pressure pulsation | 0.5%，at10Mpa | 0.5%，at 10Mpa | 1% | 1% | / | / | / |
Flow accuracy | ±0.15％ | ±0.15％ | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±1% |
Flow stability（RSD） | 0.1% | 0.1% | 0.2% | 0.2% | 0.3% | 0.3% | 0.3% |
Control mode | RS232 or LAN | ||||||
Display | 5.0-inch touch screen | ||||||
Overall dimension L*W*H | 368*260*140 | 368*260*140 | 368*260*140 | 368*260*140 | 488*380*215 | 488*380*215 | 610*460*275 |
Power | 75W | 150W | 150W | 150W | 750W | 1000W | 1500W |
Weight | 6.9kg | 6.9kg | 8.5kg | 8.5kg | 27.2kg | 27.2kg | 73kg |
Note: The above table only lists some specifications. The default material for the pump head is SS316L, and Hastelloy, PTFE, and PEEK are available as options.
